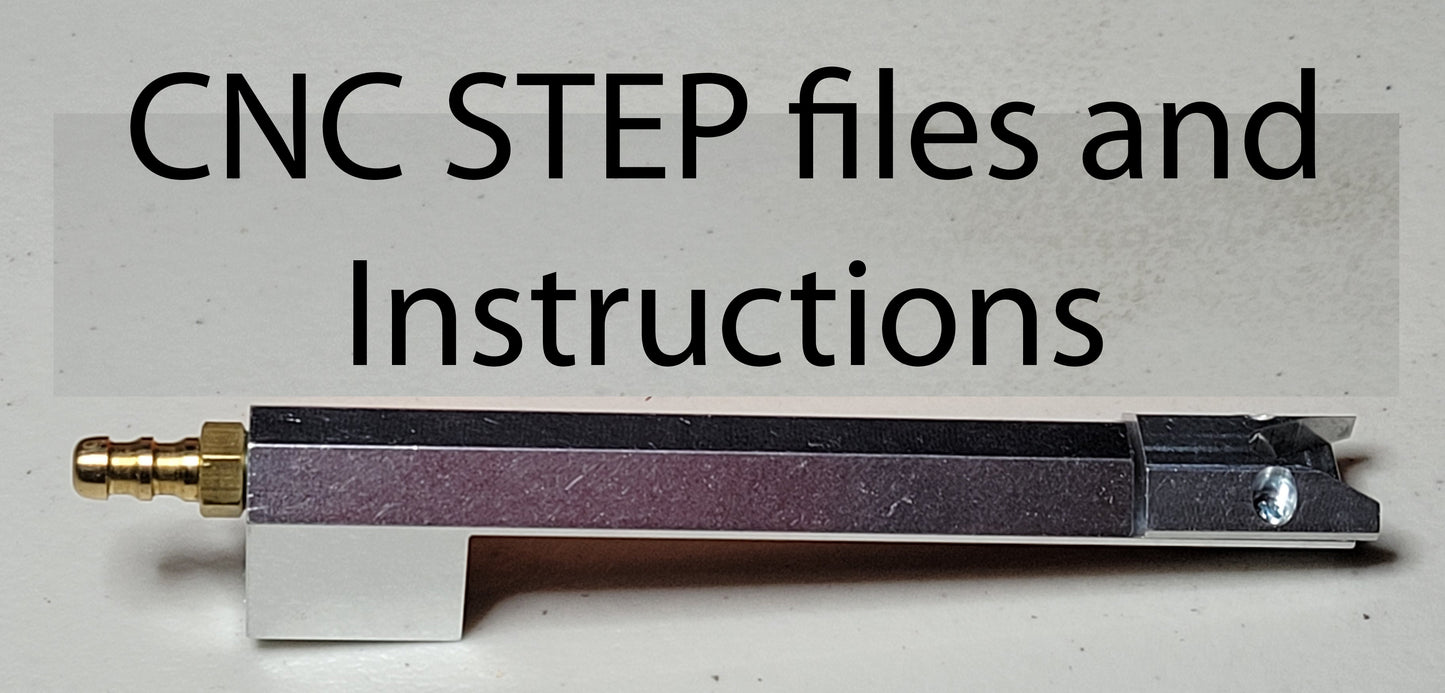

Rotax Replica Tool 976740 - CNC STEP Files (Digital Download)

Included are STEP files and instructions for fabricating these tools using CNC machining.

The files are compressed into a single ZIP file.

This information and the STEP files and instructions are the property of Omnav Aviation.  Purchase and download of the STEP files and instructions grants the purchaser unlimited use of the STEP files for production of the tool for their use only.  The STEP files, any variants or derivations based on it, and the instructions are not to be shared with others who have not purchased the rights to use it.

These are dimensionally accurate 3D models of the original Rotax 976740 tool required to complete the flow test prescribed in Rotax ASB-912 i-016 R1 / ASB-915 i-016 R1 / ASB-916 i-006 R1 (revision of SB-912 i-016 / SB-915 i-016 / SB-916 i-006).

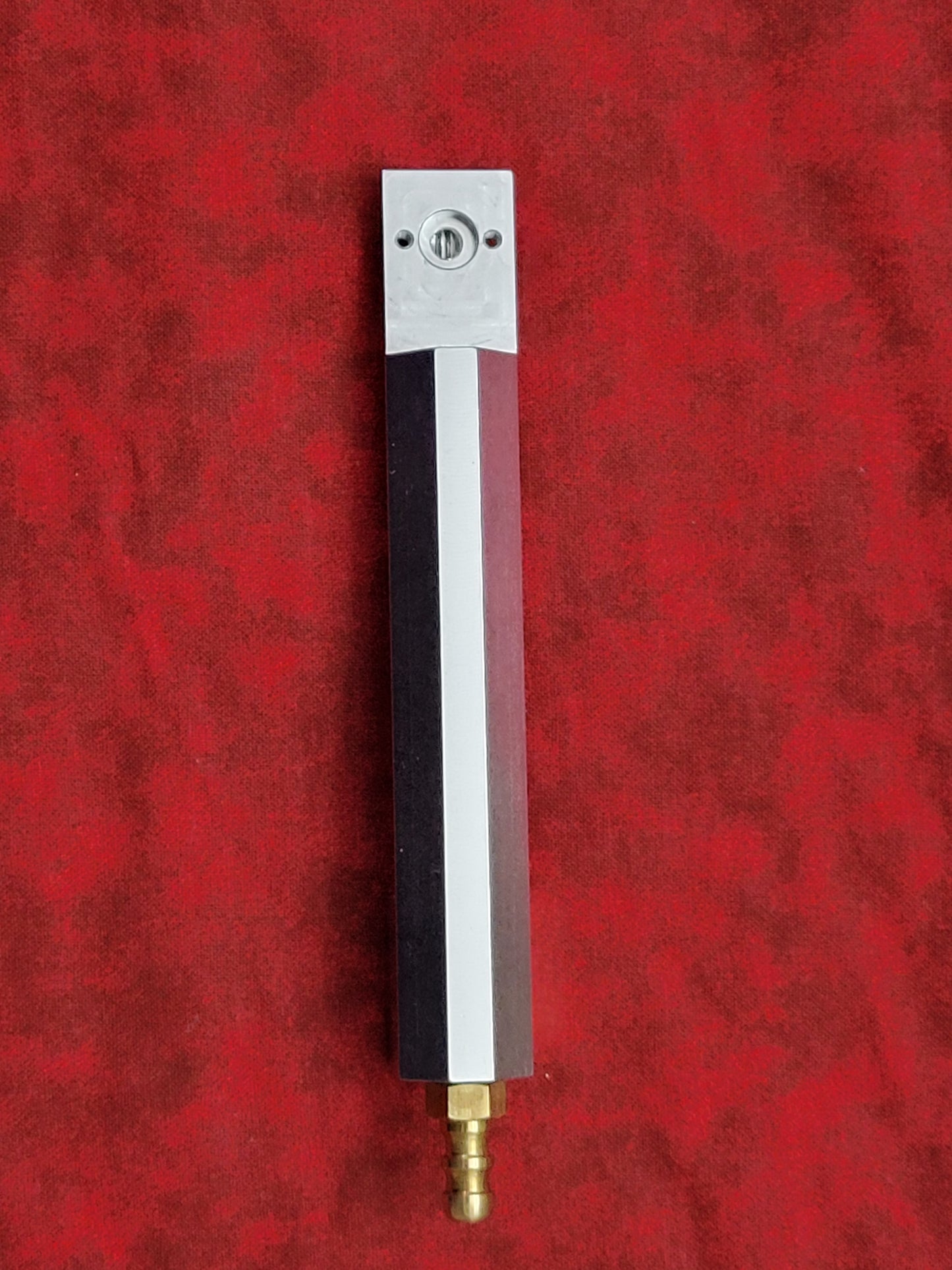

This replica tool is virtually dimensionally identical to the original tool, including the placement and depth of the orifice and o-ring.

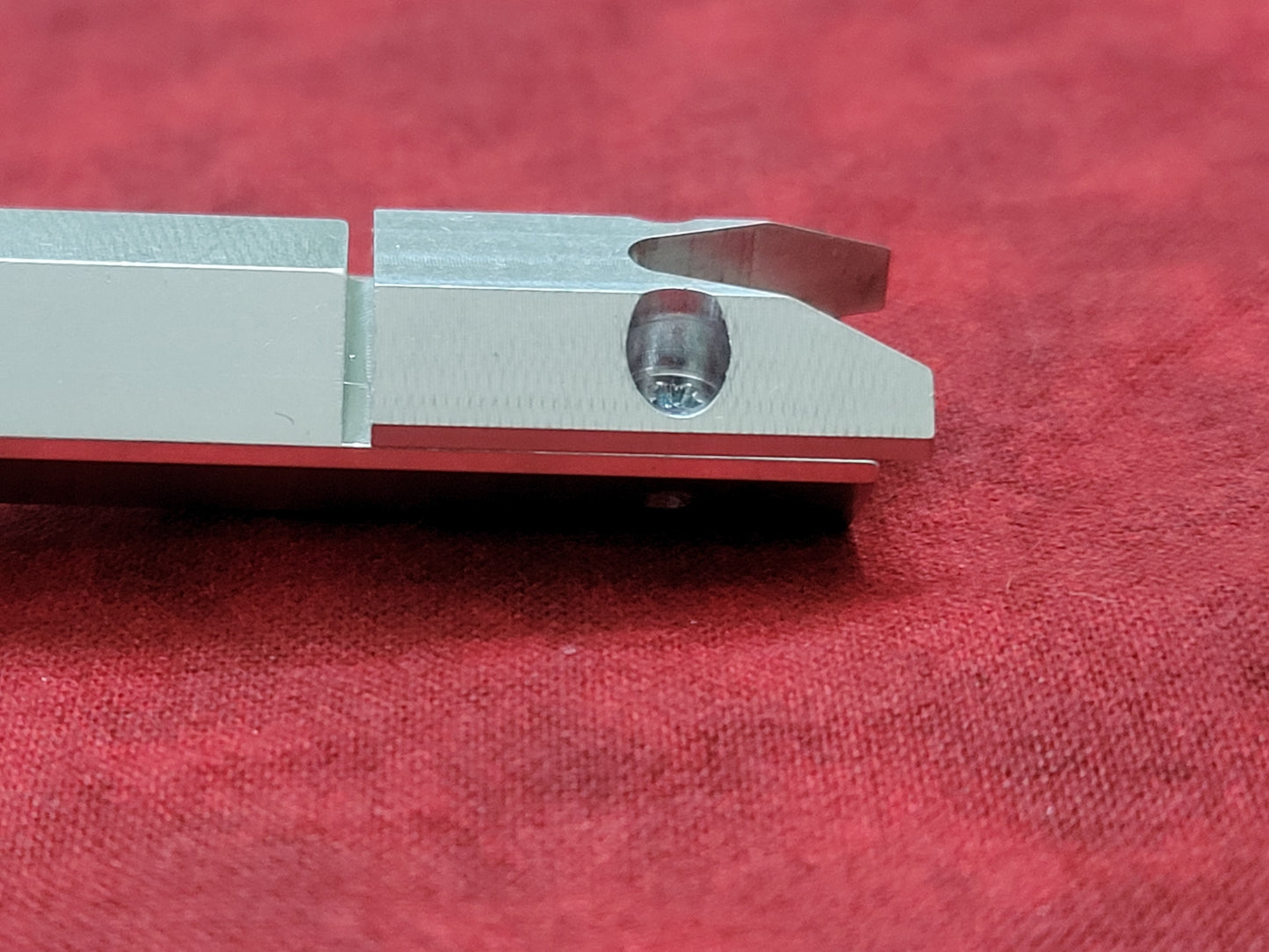

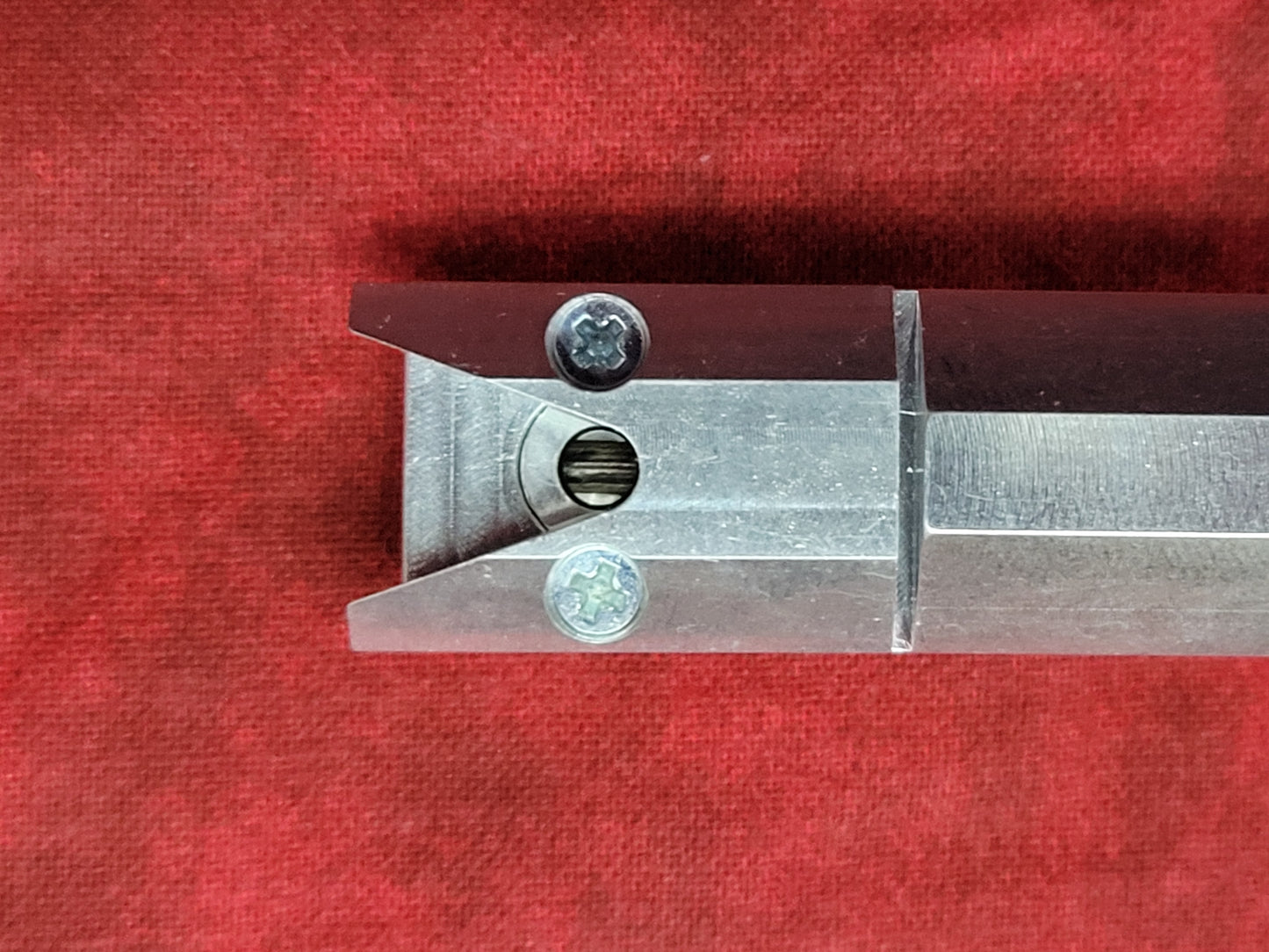

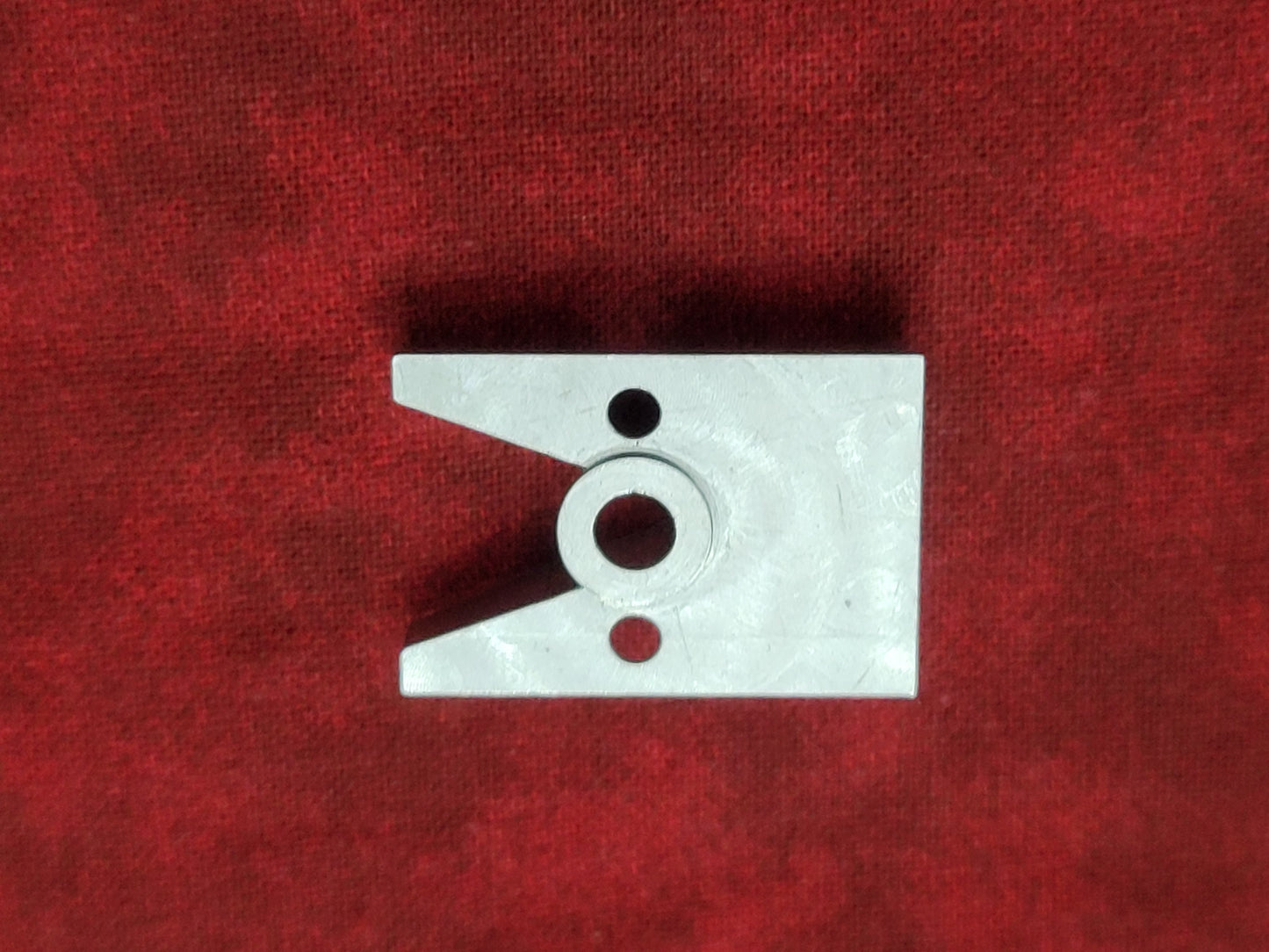

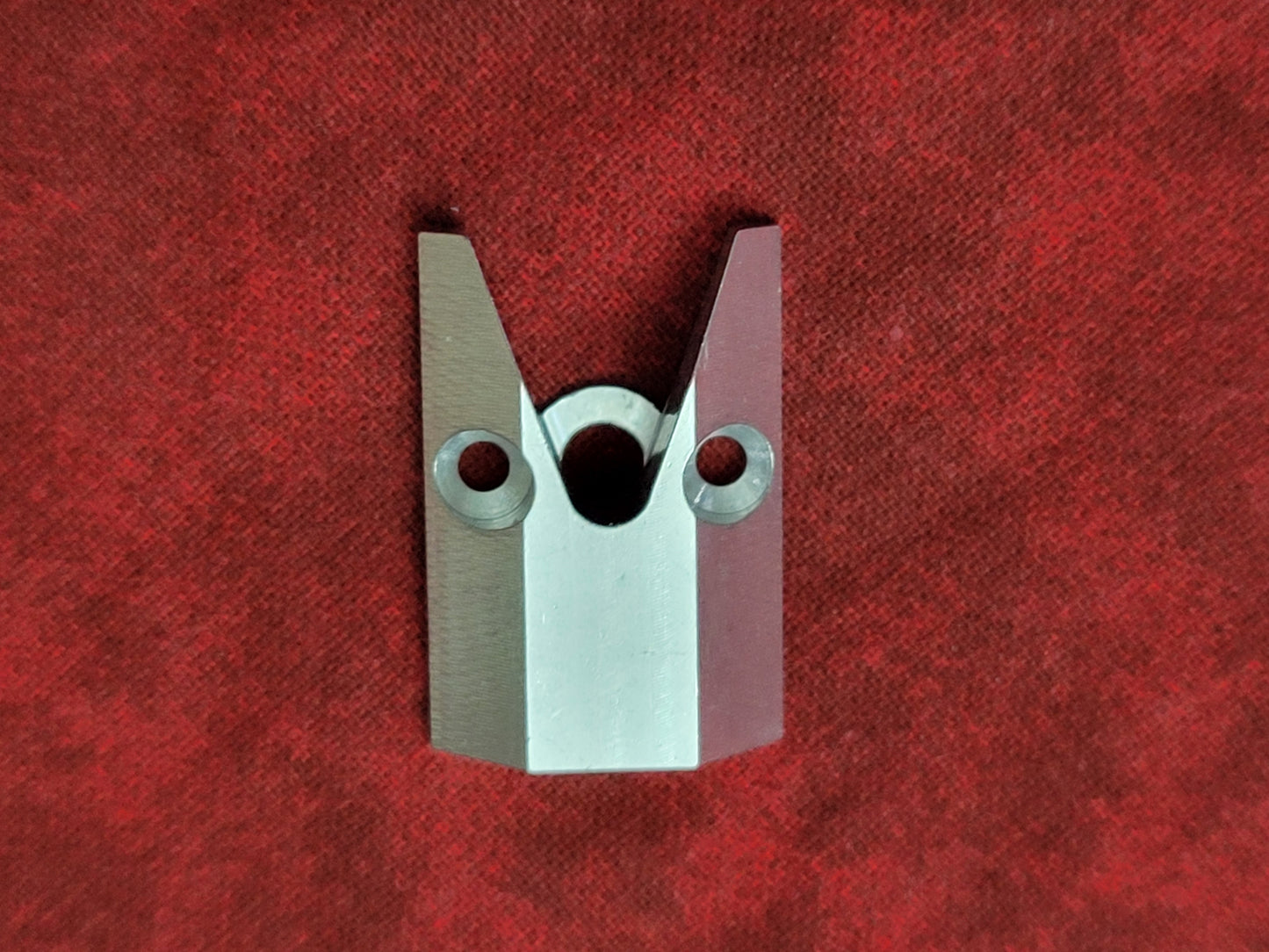

There are two parts, the body and the cap.  They can be cut from any machinable aluminum.  An O-ring is placed in the orifice in the body, and the cap is placed atop it and retained with 2 countersunk machine screws.  The original tool has a rear exiting hose barb that is a Rotax part, 940551.  This hole is tapped for an M6 x 1 thread.

It is a good idea to lubricate the o-ring with a drop of engine oil before use.

To use this tool, you will need to build a testing device, complete with a pneumatic flow meter, a pneumatic pressure regulator capable of controlling pressure to 300 mbar/4.35 psi, and a shut-off valve.  Be sure to regulate the pressure before opening the valve to this tool.  Specifications and parts required for building the test rig can be found in the Rotax ASB/SB noted above.

Disclaimer and Limitation of Liability

1. 1. Use at Your Own Risk: These 3D models and instructions are provided as-is and are intended for use to fabricate an engine testing tool. The buyer assumes all risk and responsibility for the proper use of this information.
   2. No Warranty: This product is sold without any express or implied warranties, including but not limited to the warranties of merchantability, fitness for a particular purpose, or non-infringement.
   3. Limitation of Liability: Under no circumstances shall Omnav Aviation, LLC be liable for any direct, indirect, incidental, special, or consequential damages arising from the use or inability to use this product, even if Omnav Aviation, LLC has been advised of the possibility of such damages.
   4. Indemnification: The buyer agrees to indemnify, defend, and hold harmless Omnav Aviation, LLC, its officers, directors, employees, and affiliates from any claims, liabilities, damages, and expenses (including reasonable attorneys' fees) arising from the use of this product.
   5. Intended Use: This product is designed for testing Rotax iS oil spray nozzle flow rate per Rotax ASB-912 i-016 R1 / ASB-915 i-016 R1 / ASB-916 i-006 R1. Any use of the product outside of its intended purpose is at the buyer's own risk and may void any applicable warranties or return policies.
   6. Compliance with Laws: The buyer is responsible for ensuring that the use of this product complies with all applicable laws, regulations, and safety standards.
